ControlNet Router
| EAN | 5703472608457 |
| Type | A-CNR |
| Leverandør | Prosoft |
| Varenr | 79.86.124.812 |
| Tilgængelighed | Skaffevare |
| Lagerstatus |  Ikke på lager79.86.124.812 |
| Leveringstid (dage) | 71 |
| Pakningsstørrelse | 1 |
| Salgsforpakning | 1 |
| Enhed | Stk |

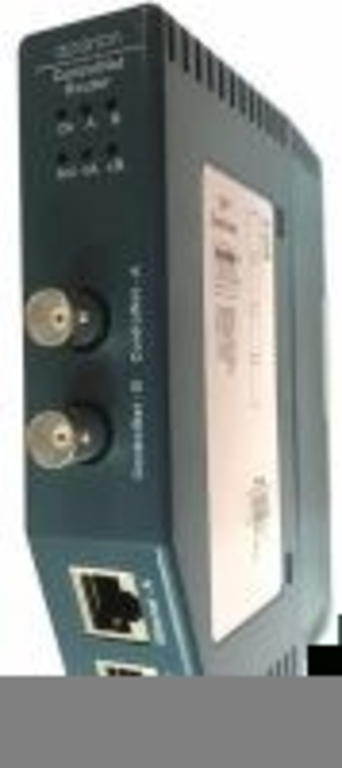

The ControlNet Router provides an efficient method of bridging between ControlNet and Ethernet networks. The module exchanges data with a Logix controller via a ControlNet bridge (eg. 1756-CNB) using Scheduled Class 1 communication or Unscheduled Class 3 / UCMM messaging. The size of the produced and consumed data is user-configurable up to 400 bytes.
The IO data can be accessed via Ethernet using either the PCCC or EtherNet/IP protocols. The former allows the module to emulate user-defined PLC5-type data files simplifying the data exchange with PanelViews. The module also provides a range of statistics on Ethernet and ControlNet to assist with fault finding.
A built-in webserver provides detailed diagnostics of system configuration and operation, including the display of ControlNet operation and communication statistics, without the need for any additional software.
The IO data can be accessed via Ethernet using either the PCCC or EtherNet/IP protocols. The former allows the module to emulate user-defined PLC5-type data files simplifying the data exchange with PanelViews. The module also provides a range of statistics on Ethernet and ControlNet to assist with fault finding.
A built-in webserver provides detailed diagnostics of system configuration and operation, including the display of ControlNet operation and communication statistics, without the need for any additional software.
